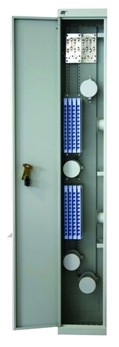

GPX29K Optical Distribution Frame (ODF)

Brief introduction:

GPX29K ODF, open or close design, acts as interface, in fixed or mobile networks, between the exchange and the transmission equipment. GPX29K consists of ONT-116 Splice & Distribution Case (SDC, 72F), the mounting frame or cabinet and all the necessary accessories for ODF.

Features:

• Adopting the popular 19” cabinet.
• 72F Splice & Distribution Case (SDC), combing splice and distribution into one unit.
• Stable equipments for fixing, stripping and grounding of the optical fibers.
• Suitable for ribbon and bunchy optical fibers.
• Suitable for installation of FC, SC and ST adaptors.
• Optical fibers, fiber optic pigtails and patch cords are separate, without disturbing each other.

General specification:

Besides, Due to its modular design, capacity can be tailored at the customers’ requirements.

Technical specification:

• Connectors loss≤0.5dB
• Return loss: FC/PC ≥ 40 dB, FC/UPC≥ 50 dB, FC/APC ≥ 60 dB
• Connector life span ≥ 1000 times
• Insulation resistance ≥ 1000MΩ/500V (DC)
• Dielectric strength ≥3000V (DC) /1min, no spark-over and no flying arc.
