ESC25D Fast Connect Fiber Connectors , Fiber Optic Lc Connector For Transformation

    Buy cheap ESC25D Fast Connect Fiber Connectors , Fiber Optic Lc Connector For Transformation from wholesalers

    Buy cheap ESC25D Fast Connect Fiber Connectors , Fiber Optic Lc Connector For Transformation from wholesalers
    • Buy cheap ESC25D Fast Connect Fiber Connectors , Fiber Optic Lc Connector For Transformation from wholesalers

    ESC25D Fast Connect Fiber Connectors , Fiber Optic Lc Connector For Transformation

    Ask Lasest Price
    Model Number : ESC25D
    Payment Terms : T/T
    Delivery Time : in one week
    • Product Details
    • Company Profile

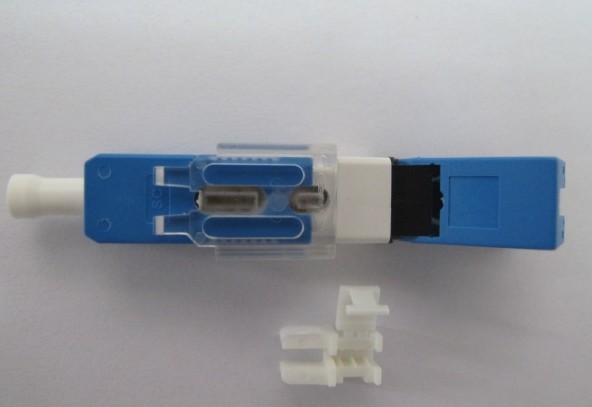

    ESC25D Fast Connect Fiber Connectors , Fiber Optic Lc Connector For Transformation

    Mechanical Fiber Optic Connector-Fiber Pre-embeded Tech, Fiber Optic Connectors Optic Fast LC Connectors Fast Connector


    Mechanical Fiber Optic Connector-Fiber Pre-embeded Tech


    ESC25D


    ESC25D Fast Connect Fiber Connectors , Fiber Optic Lc Connector For Transformation


    Application FTTx,Data Room Transformation

    Cutting 250um fiber 20.85mm, 125um fiber 7.7mm


    Technical specification

    ItemParameter
    Cable Scope3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable
    Size:51*9*7.55mm
    Fiber Diameter125μm ( 652 & 657 )
    Coating Diameter250μm
    ModeSM
    Operation Timeabout 15s(exclude fiber presetting)
    Insertion Loss≤ 0.3dB(1310nm & 1550nm)
    Return Loss≤ -50dB for UPC, ≤ 55dB for APC
    Success Rate>98%
    Reusable Times>5 times
    Tensile Strength>30 N
    Temperature-40 ~ +85 C
    On-line Tensile Strength Test (20 N)IL ≤ 0.3dB
    Mechanical Durability(500 times)IL ≤ 0.3dB
    Drop Test(4m concrete floor, once each direction, three times total)IL ≤ 0.3dB

    Relevant Solutions

    • Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.
    • With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.
    • Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
