Model Number : | GPJ-01V10 |
Payment Terms : | T/T |
Delivery Time : | in one week |
480/240 fibers Fiber Optic Splice Closure Heat Shrinkable Joint Closure Cable Sealing Fiber Optic Joint Box

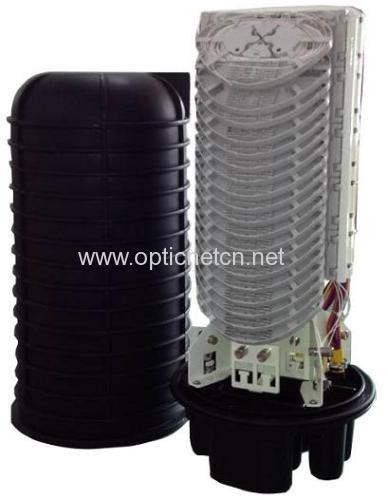

GPJ-01V10 Fiber Optic Splice Closure
Specification
● Easy to re-enter, it never requires re-entry tool kit.
● The strong housing provide fire resistant, waterproof and quakeproof while protecting splices during pulling, torsining and impacting
● Design flexibility and high reliable sealing system
● Cable sealing method: heat shrink type
Application
● It can be used in straight-through and branching application
● It can be used in aerial, underground, direct buried, wall-mounting, hand hole and duct mounting application.
● it can be mounted on a pole, wall or strand.
Ordering Information
Model No. | Fiber Optic Splice Tray (FOST) | Total Capacity (fibers) | No. of adapters | Dimension (H x D) mm | No of Cable Entry |
GPJ-01V10 I | 40 pieces of FOST with 12 fibers per tray | 480 fibers | / | 525x245 | 2 large oval port 8 round ports |
GPJ-01V10 II | 20 pieces of FOST with 12 fibers per tray | 240 fibers | 48 pcs of SC |
Accessories
The accessories included in the FOSC: earthing wire, nylon tie, buffer tube, emery paper, metal paper, metal hoop, insulation tape, aluminum foil.
The accessories to be ordered in addition: earthing ground, pressure testing valve, small heat shrinkable fixing sleeve (for small round), big heat shrinkable fixing sleeve with branching-off clip (for large oval port)
![]() |
